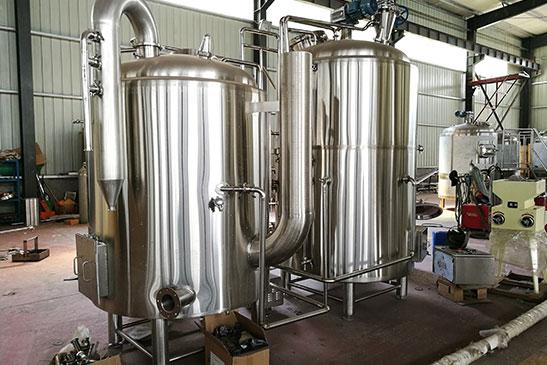

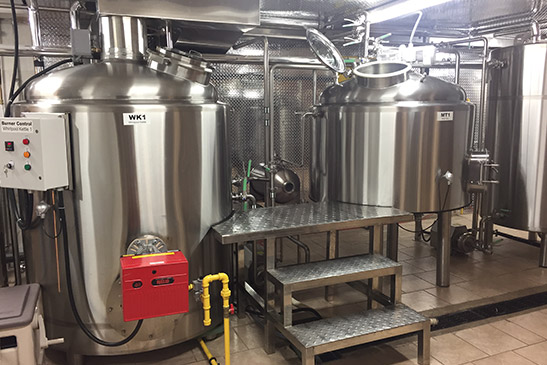

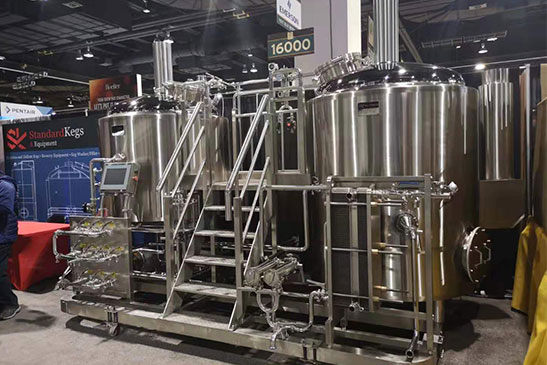

3HL 5HL 10HL Or 3BBL 5BBL 7BBL 10BBL Gas Fired Brewhouse

General description:

Material: SUS304, 316L (optional),

Basic configuration: mash tun / lauter tun + kettle / whirlpool tank

                                   mash / boiling tank + lauter / whirlpool tank

Capacity: 3HL 5HL 10HL Or 3BBL 5BBL 7BBL 10BBL or customized

Basic Spec:

Mash tun without heating, with top or bottom stir blade, VFD, wort recirculation, sparging etc.

Gas chamber under mash / boiling tank or kettle / whirlpool tank. With burner connection and inspection door.

Whirlpool under lauter or combined with lauter, depends on different configuration

Support fittings: double / single stage plate cooler, piping strainer, grist hydrator

Standard brewhouse platform or customized

All pump & Stir with VFD

With hot water tank configured for sparging and mashing in etc and increasing production efficiency.

Piping connection to be TC or DIN.

Optional:

Control: Semi Automatic

Optional copper cladding

Customers logo can be engraved

Bottom frame for installing the whole brewhouse unit
